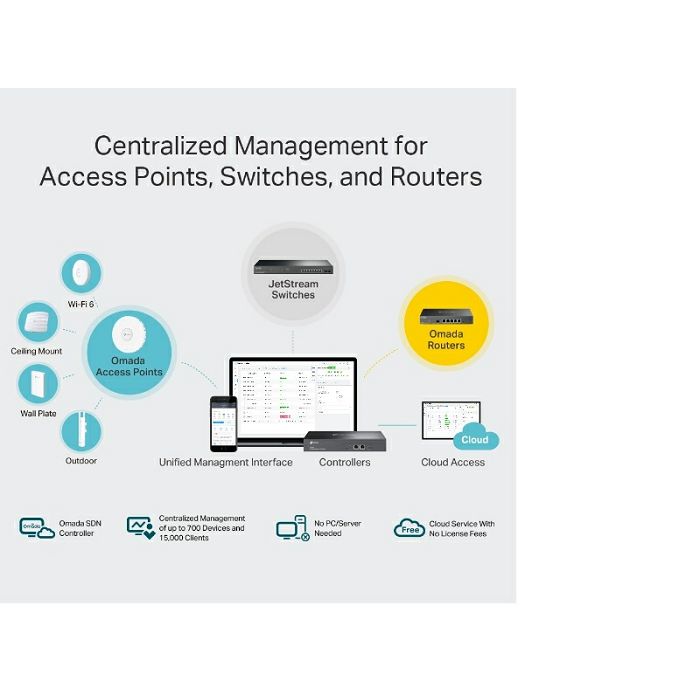

Centralized management: up to 500 Omada access points, 100 JetStream switches and 100 Omada routers.

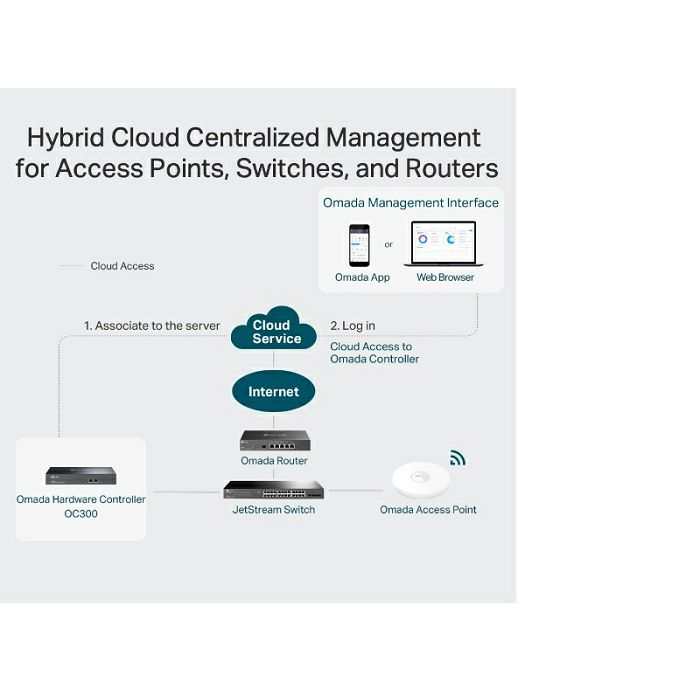

Free cloud access: Manage and monitor with the Omada app or web UI from anywhere, anytime.
On-site management: Monitor and manage devices locally with superior security and stability.

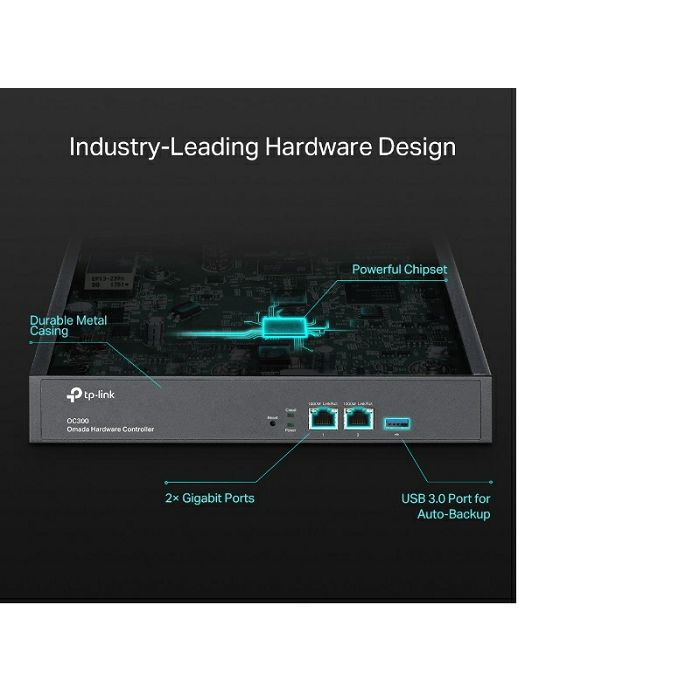

Industry-leading hardware design: powerful chipset, durable metal chassis, USB 3.0 port for automatic backup and two gigabit ports.
Simple and intelligent network monitoring: An easy-to-use dashboard provides a simple view of network status and traffic distribution in real time.
Real-time network topology: Helps IT administrators quickly see and fix problems at a glance.
Easier network maintenance: WiFi heat map simulator, visualized network report, and packet and multi-site management benefits network maintenance.

Interface :
2× 10/100/1000 Mbps Ethernet ports
1× USB 3.0 port

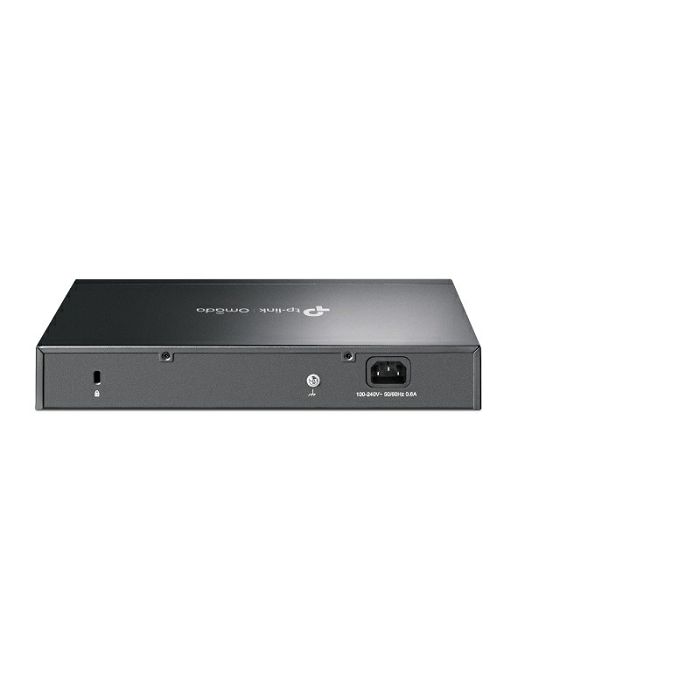

Power supply :
100-240V~50/60Hz, 0.6A
Dimensions : 294 × 180 × 44 mm
Management : Omada application
Centralized management : Up to 500 Omada access points, JetStream switches and SafeStream routers
Up to 15,000 customers
Access to the cloud
L3 management
Manage multiple sites

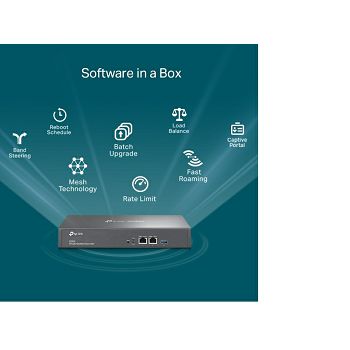

Management functions
Automatic device detection
Package configuration
Batch firmware upgrade
Intelligent network monitoring
Alerts of abnormal events
Unified configuration
Restart schedule
Interception portal configuration
Certification : CE, FCC, RoHS
Package contents

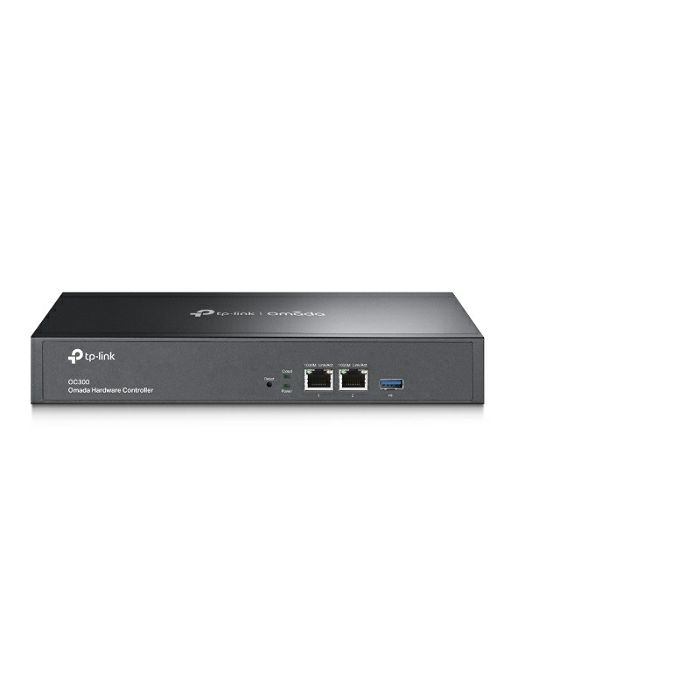

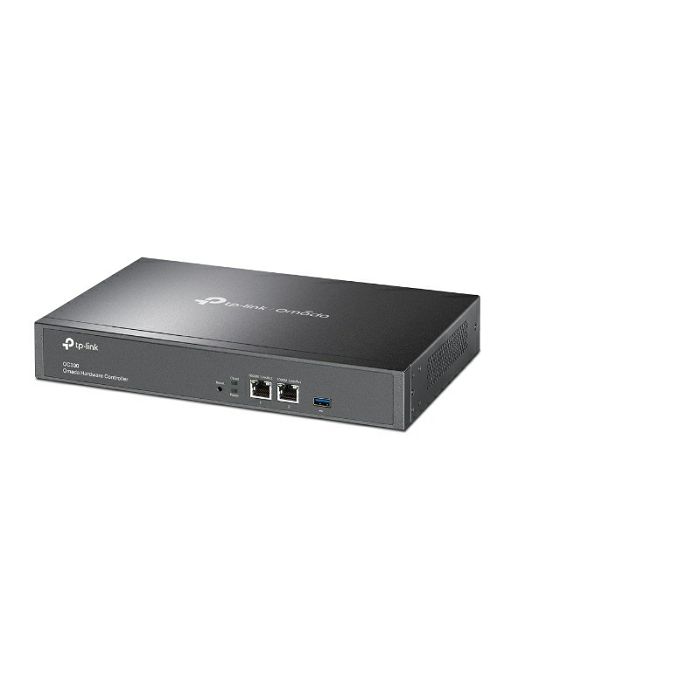

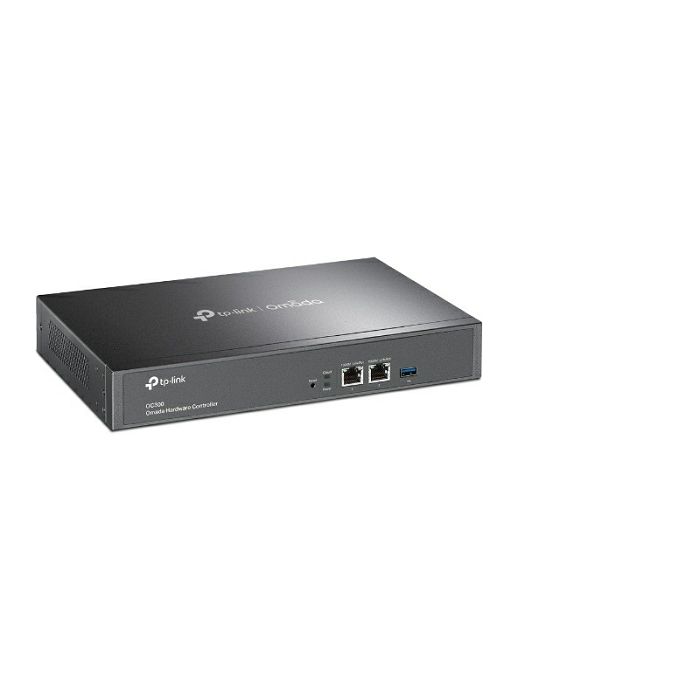

Omada OC300 hardware controller
Quick installation instructions
Ethernet cable
Power cable
Rack mounting kit
Environment :
Operating Temperature: 0-50℃ (32-122℉)
Storage temperature: -40-70℃ (-40-158℉)
Operating humidity: 10-90% RH non-condensing
Storage humidity: 5-90% RH non-condensing
