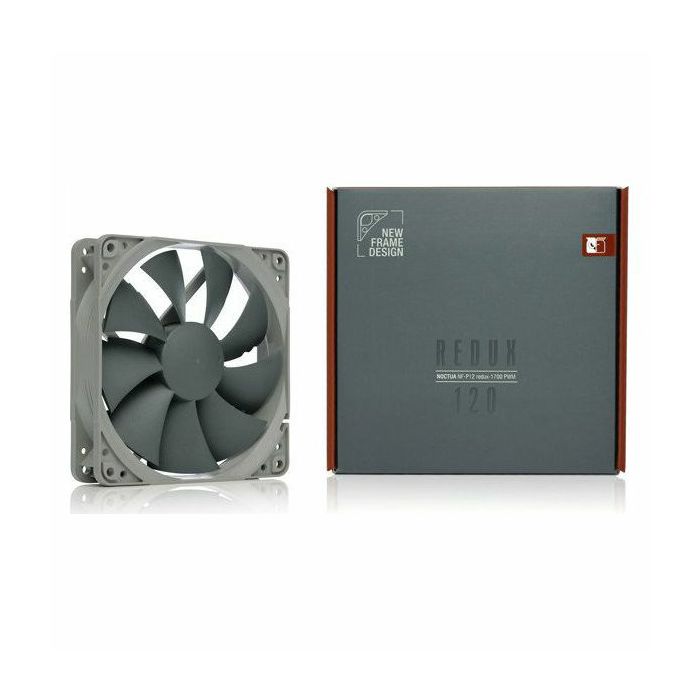

Specifically designed for pressure demanding applications such as CPU or radiator cooling, the classic NF-P12 is a long-standing favourite among enthusiast users around the world and helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-P12 premium fan. Its industry grade SSO bearing, over 150.000 hours MTTF rating and full 6 years manufacturer’s warranty make the NF-P12 redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The performance-oriented top speed of the 1700rpm PWM version is ideal for high efficiency case, radiator and CPU cooling as well as other applications that require both extended performance headroom and PWM for automatic speed control.
FAN Specification
Size
120x120x25 mm
Mounting hole spacing
105×105 mm
Connector & pin-configuration
4-pin PWM
Cable length
40cm
Bearing
SSO-Bearing
Blade geometry
Pressure-optimized Nine Blade Design with Vortex-Control Notches
Rotational speed (+/- 10%)
1700 RPM
Min. rotational speed (PWM, +/-20%)
450 RPM
Airflow
120,2 m³/h
Acoustical noise
25,1 dB(A)
Static pressure
2,83 mm H2O
Max. input power
1,08 W
Max. input current
0,09 A
Operating voltage
12 V
MTTF
> 150.000 h
Scope of delivery

Fan screws
