BASE: AMD AM5
FOR PROCESSORS: AMD RYZEN 7000 Series
FORMAT: ATX format 30.5 cm x 24.4 cm
CONNECTION CHIP: AMD B650
MEMORY:
4 x DDR5 DIMM ECC and Non-ECC, Un- buffered Memory 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/ 5800(OC)/5600(OC)/5400(OC)/5200/5000/4800MHz (depending on the processor) up to a total capacity of 192GB, dual channel and EXTended Profiles for Overclocking, OptiMem IIsupport
GRAPHICS: YES - via APU
RAID: YES (0,1,10)
EXPANSION SLOTS:
1 x PCI Express 4.0 x16
1 x PCI Express 3.0/4.0 x4
2 x PCI Express 3.0/4.0 x1
NETWORK CARD: Intel 2.5GbELAN chip (10/100/1000Mbit/ 2.5Gbit LANGuard + Wi-Fi 6E 2.4/5GHz 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) + Bluetooth v5. 2
SOUND CARD: ROG SupremeFX 7.1 span> Audio codec ALC4080 High Definition Audio (2/4/5.1/7.1-channel)
INTERNAL CONNECTIONS:
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers supports additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™header
1 x COM_DEBUGheader

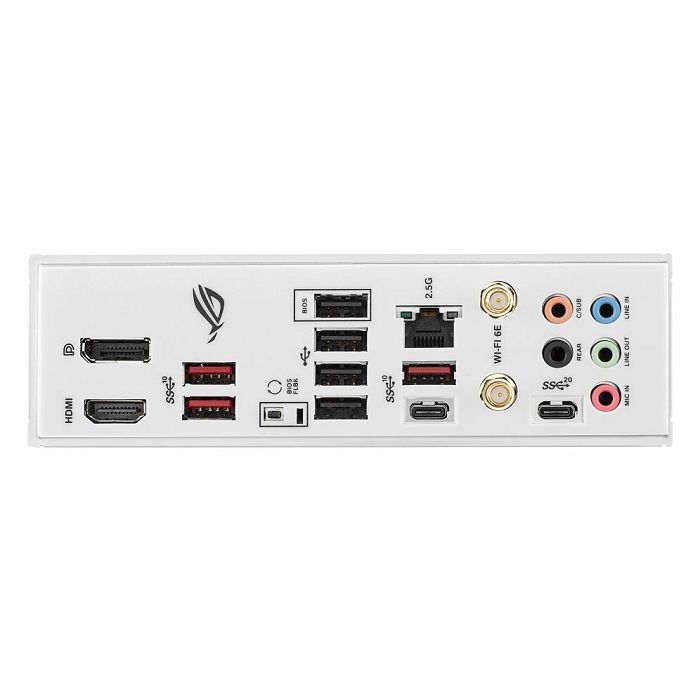

EXTERNAL CONNECTIONS:
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port< br />5 x Audio jacks
1 x BIOS FlashBack button
