CENTRALIZED POWER MANAGEMENT FOR GIGABIT ETHERNET PoE NETWORKING

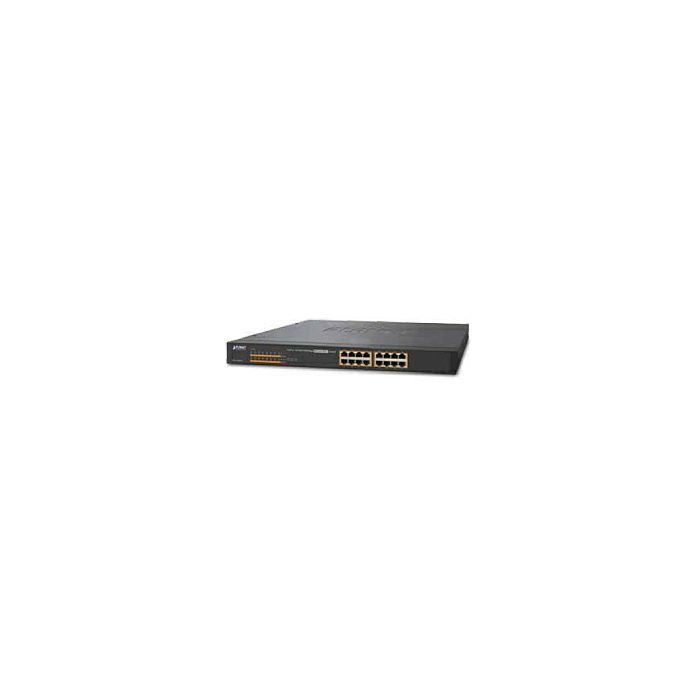

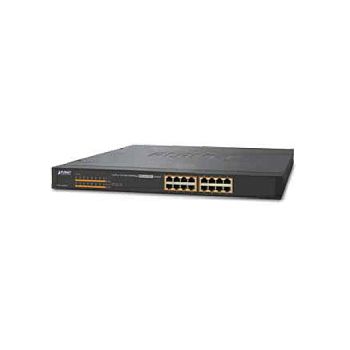

- To facilitate high power PoE network applications with Gigabit speed transmission, the GSW-1600HP 16-Port Gigabit High Power over Ethernet Switch features high performance Gigabit IEEE 802.3af PoE (Up to 15.4W) and IEEE 802.3at HighPower PoE (Up to 30.8W) capabilities on all ports
- By offering reliable switching technology and advanced networking features, the GSW-1600HP optimizes the installation and power management of network devices such as wireless access points (AP), VoIP phones, and security video cameras
- It also eliminates time and cost of deployment by integrating power and data switching into one unit, and freeing network devices from restrictions of power outlet locations and the additional AC wiring

Features
INTERFACE
- 16-Port 10/100/1000Mbps Gigabit Ethernet RJ-45 ports
- Each port supports 52V DC power to PoE Powered Device

POWER OVER ETHERNET
- Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet
- Up to 16 IEEE 802.3af / IEEE 802.3at devices powered
- Supports PoE Power up to 30 Watts for each PoE port
- Auto detect powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m

SWITCHING
- Hardware based 10/100/1000Mbps Auto-Negotiation and Auto MDI/MDI-X
- Flow control for Full Duplex operation and back pressure for Half Duplex operation
- Integrates address look-up engine, supporting 8K absolute MAC addresses
- 9K Jumbo Frame supports at all speed (10/100/1000Mbps)
- Automatic address learning and address aging
- Supports Pre-Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)

HARDWARE
- 19-inch desktop size, 1U height
- LED indicators for PoE ready and PoE activity
- Ethernet Link Energy-Saving technology
- Link down power saving
- Intelligent scales power based on cable length


Specifications
HARDWARE SPECIFICATION
- Network Port: 16× 10/100/1000Base-T Auto-MDI/MDI-X RJ-45 ports
- PoE Inject Port: 16-Port with 802.3af / 802.3at PoE injector function
- LED Display:
* System: Power (Green)
* PoE Ethernet Interfaces: PoE In-Use (Orange)
* 10/100/1000Base-T Ports: 1000 (LNK/ACT, Green), 10/100 (LNK/ACT, Orange)
- Switch Architecture: Store and Forward switch architecture
- MAC Address: 8K MAC address table with Auto learning function
- Switch Fabric: 32Gbps
- Switch Throughput: 23.8Mpps@64Bytes
- Jumbo Packet Size: 9K Bytes
- Flow Control: Back pressure for Half-Duplex. IEEE 802.3x Pause Frame for Full-Duplex
- Power Requirement: AC 100-240V, 50/60Hz, 3.5A max.
- Power Consumption: Max. 260 Watts / 885 BTU
- Dimension (W×D×H): 445×207×45 mm (1U height)
- Weight: 2.54 kg

POWER OVER ETHERNET
- PoE Standard:
* IEEE 802.3af Power over Ethernet / PSE
* IEEE 802.3at Enhancement Power over Ethernet / PSE
- PoE Power Output:
* Per Port 52V DC, 300mA. Max. 15.4 Watts (IEEE 802.3af)
* Per Port 52V DC, 590mA. Max. 30 Watts (IEEE 802.3at)
- PoE Power Budget: 220 Watts
- Number of PD, 7 Watts: 16
- Number of PD, 15.4 Watts: 14
- Number of PD, 30.8 Watts: 7

STANDARD COMPLIANCE
- IEEE 802.3: Ethernet
- IEEE 802.3u: Fast Ethernet
- IEEE 802.3x: Flow Control
- IEEE 802.3af: Power over Ethernet
- IEEE 802.3at: Enhancement Power over Ethernet
- IEEE 802.3az: Pre-Energy-Efficient Ethernet
- Regulation Compliance: FCC Class A, CE

ENVIRONMENT
- Operating environment: 0 to 50 Degree C
- Storage environment: -40 to 70 Degree C
- Operating Humidity: 5% - 95%, relative humidity, non-condensing
- Storage Humidity: 5% - 95%, relative humidity, non-condensing
