Arm Your PC with Wi-Fi 6 and Bluetooth 5.2

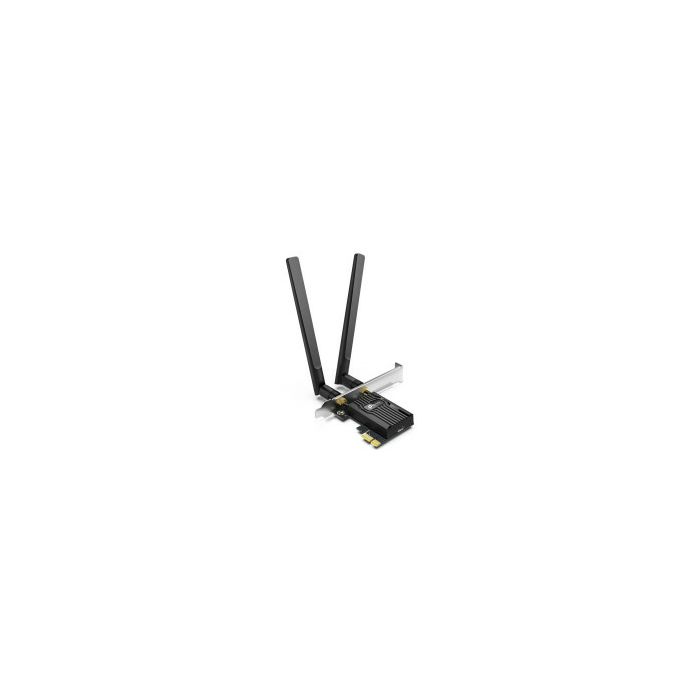

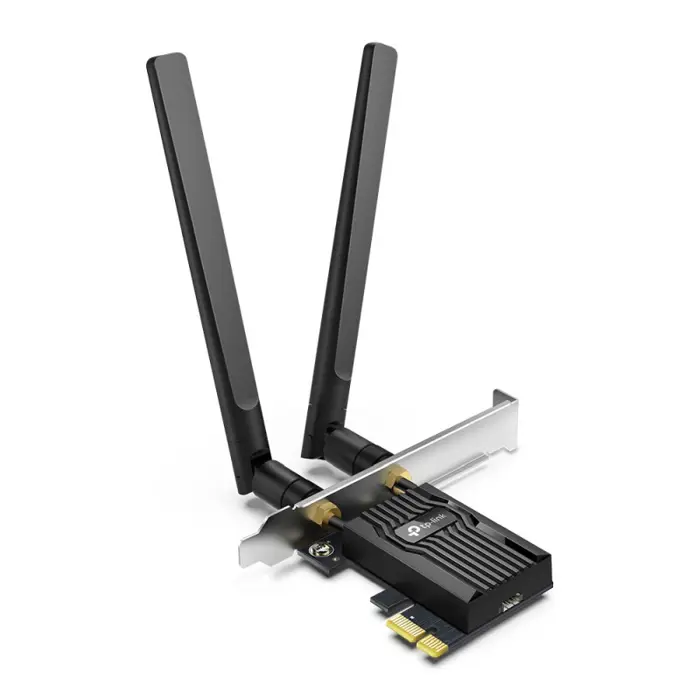

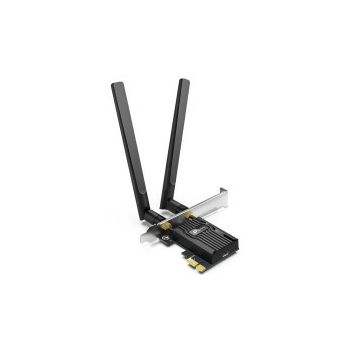

- AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

Ultra-Fast Wi-Fi Experience
- The very latest Wi-Fi standard, Wi-Fi 6, provides extreme speed, ultra-low latency, and uninterrupted connectivity so you enjoy faster downloads, smoother streaming, and more immersive gaming.

Keep Step Ahead
- 1024-QAM and a 160 MHz bandwidth deliver powerful, continuous Wi-Fi to fully unlock the potential of your Wi-Fi 6 router.
Achieving speeds 3× faster than standard AC Wi-Fi drives your PC to peak performance so your setup keeps pace with your jaw-dropping skills.

Immediate Response
- Revolutionary OFDMA reduces lag by up to 75%. Enjoy ultra-responsive real-time gaming or immersive VR experiences.

High-Gain Antennas for Broader Coverage
- Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away.

Bluetooth 5.2 Compatible
- The latest Bluetooth 5.2 Technology, achieves speeds 2× faster and coverage 4× broader than Bluetooth 4.2, to perfectly coordinate with your game controllers, headphones, keyboards, and other Bluetooth devices.

Cutting-Edge Security
- WPA3, the latest network security standard, provides more secure and individualized encryption in personal password safety, protects your network from wireless hacking, and ensures your wireless connection is completely secure while surfing the web and shopping online.

More Devices, Less Congestion
- OFDMA creates separate channel segments for devices to communicate while MU-MIMO allows multiple clients to simultaneously receive data. Combining these technologies guarantees your PC gets strong, efficient, and lag-free wireless connectivity at the same time all of your other devices are communicating.

Ingenious Manufacturing for Perfect Performance
- Built with a specialized heatsink crafted to improve stability and reliability even in hot environments. Careful attention to every detail, such as gold plating on every contactor to resist oxidation, delivers a superior network experience.

Specifications
HARDWARE FEATURES
- Dimensions: 4.72 x 3.09 x 0.82 (inches) 120 x 78.5 x 21 (mm)
- Antenna Type: Two High-Gain Dual Band Antennas
- Chipset: Intel Wi-Fi 6 Chipset

BLUETOOTH FEATURES
- Standards and Protocols: Bluetooth 5.2, Bluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0
- Interface: F_USB 2.0

WIRELESS FEATURES
- Wireless Standards
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/g/b 2.4 GHz
- Bluetooth: 5.2/5.0/4.2/4.0

- WLAN Signal Rate:
5 GHz
• 11ax: Up to 2402 Mbps(dynamic)
• 11ac: Up to 1733 Mbps(dynamic)
• 11n: Up to 300 Mbps(dynamic)
• 11a: Up to 54 Mbps(dynamic)

2.4 GHz
• 11ax: Up to 574 Mbps(dynamic)
• 11n: Up to 300 Mbps(dynamic)
• 11g: Up to 54 Mbps(dynamic)
• 11b: Up to 11 Mbps(dynamic)

- WLAN Reception Sensitivity
• 5 GHz :
• 11ax HT160:-56.25dBm
• 11ax HT80: -59dBm
• 11ax HT40: -62.25dBm
• 11ax HT20: -65dBm

• 11ac HT160:-62dBm
• 11ac HT80: -65.5dBm
• 11ac HT40: -69.75dBm
• 11ac HT20: -73.75dBm
• 11n HT40: -74.5dBm
• 11n HT20: -77.5dBm
• 11a 54Mbps: -77.75dBm
• 11a 6Mbps: -94.5dBm

2.4GHz :
• 11ax HT40: -60.75dBm
• 11ax HT20: -63.75dBm
• 11n HT40: -73dBm
• 11n HT20: -76.25dBm
• 11g 54Mbps: -76.5dBm
• 11b 11Mbps: -89dBm

- WLAN Transmit Power
• 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
• 2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP)
- WLAN Modes: Infrastructure mode
- Wireless Security: Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
- Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM

OTHERS
- Certification: CE, FCC, RoHS
- Package Contents
• Archer TX55E
• Two High-Gain Antennas
• Low-Profile Bracket
• Standard Bluetooth Header Cable
• Quick Installation Guide
• Resource CD
- System Requirements: Windows 10(64-bit) only
- Environment
• Operating Temperature: 0?~40? (32?~104?)
• Storage Temperature: -40?~70? (-40?~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
