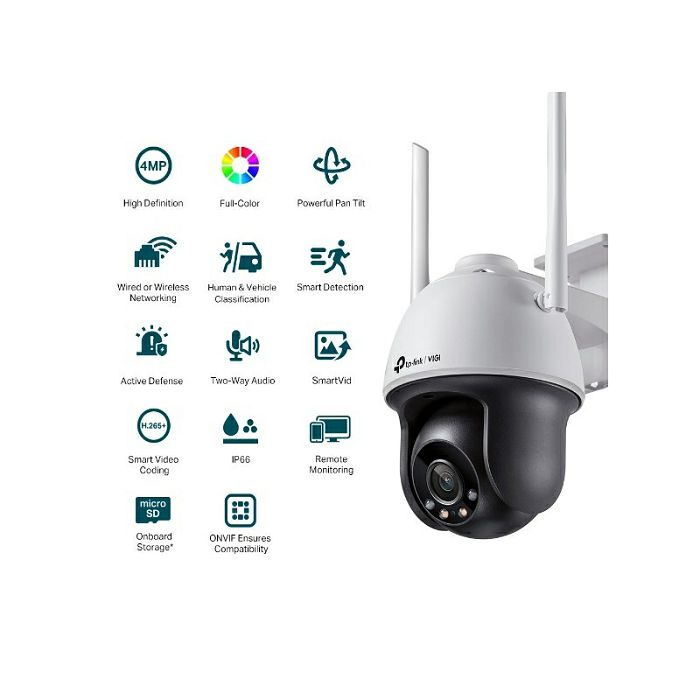

Super high resolution with 4 megapixels: The camera has a resolution of 4 megapixels – more than enough pixels to pick up some of the more discrete details.
24-hour full color: Get 24-hour color details, even in dark conditions, with a large-aperture lens, high-sensitivity sensor and additional lights included.

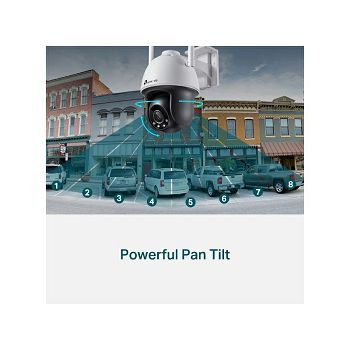

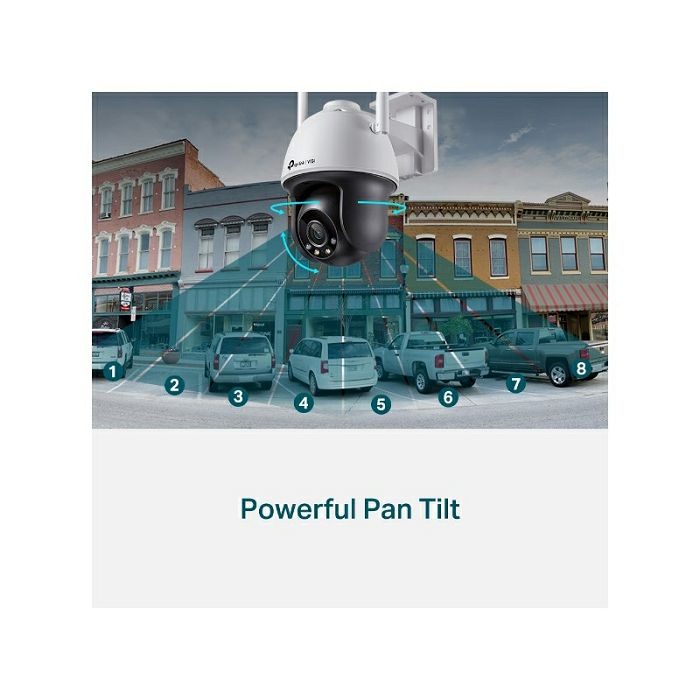

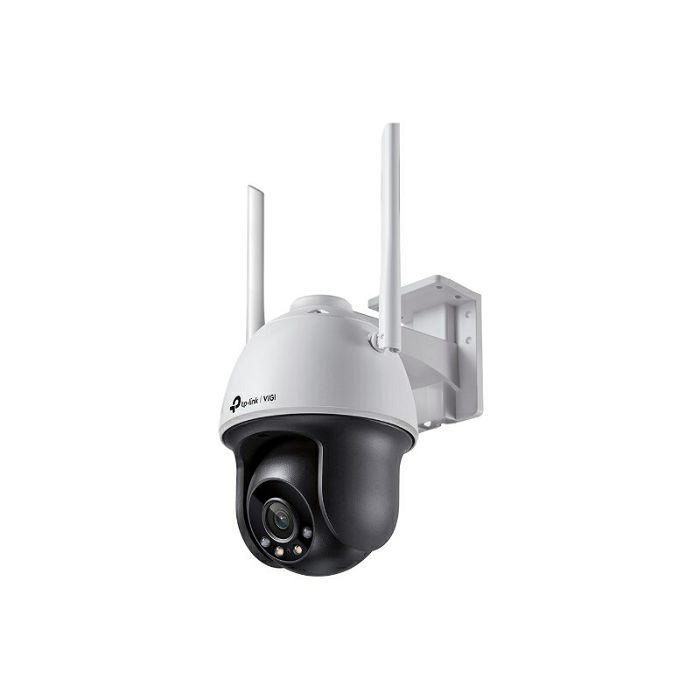

Powerful Pan Tilt: Customized patrol routes and automatic tracking provide more intelligent options for monitoring key areas and improving the security of your property.

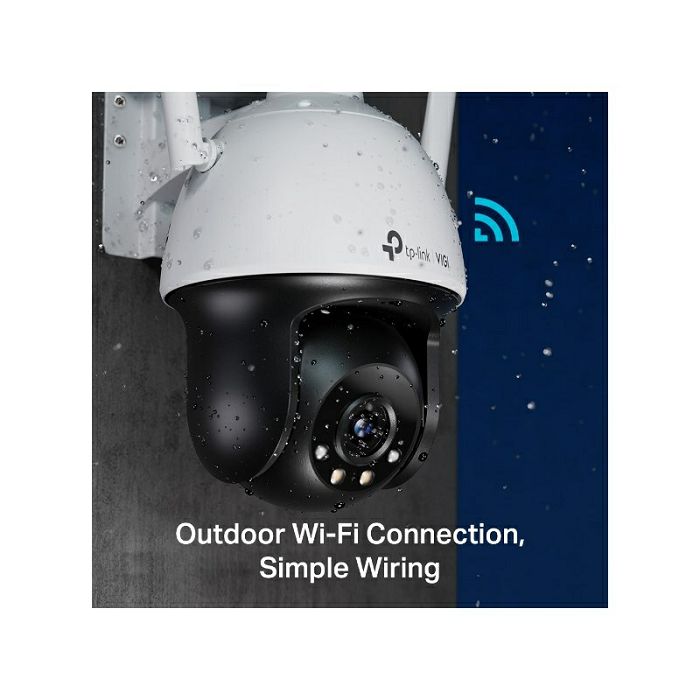

Outdoor wireless: Easy and fast installation with Wi-Fi signals.
People and vehicle classification: Separates people and vehicles from other objects so you get more accurate event notifications.
Smart detection: Receive notifications and check sources when someone crosses a border, enters an area you've set, obstructs the camera, or removes/abandons objects.

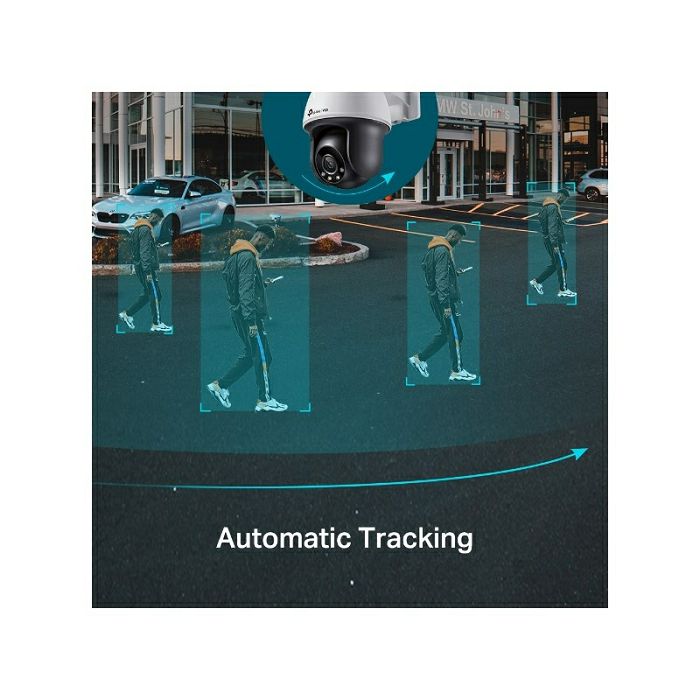

Auto Tracking: Keep following specific moving people or vehicles with Pan Tilt cameras that intelligently analyze image.
Active Defense: Instantly warn potential intruders with sound and light when unusual events occur.
Two-way audio: Intelligently detect activities, notify you immediately, and automatically respond with smart detection and two-way audio.
H.265+: Without using extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, lighten network load and reduce monitoring costs without sacrificing image quality.
Smart Video Enhancement: Professional VIGI technologies process videos to greatly improve their quality, which is crucial for your monitoring, including smart IR, WDR, 3D DNR and night vision.
Waterproof IP66: Reliable IP66 for stable outdoor operation.
Flexible management and storage: Take full control of your security through four management modes: Web UI, NVR UI, VIGI App and VIGI Security Manager. Local memory is available for each method, as well as built-in memory with an SD card slot (up to 256 GB)
CAMERA
Image sensor 1/3” CMOS with progressive scan
Shutter speed 1/3 to 1/10000 s
Slow shutter Yes
Minimum illumination color: 0.005 Lux; 0 lux with IR/white light
Day/night mechanism IR Cut Filter
Day/night switching unified/scheduled/automatic
Lens Fixed focus lens (4mm)
Shutter 4mm: F1.6
Lens mount M12
Viewing angle (4mm) Horizontal field of view: 80°, Vertical field of view: 43.2°, Diagonal field of view: 94.2°
Digital noise reduction 3D DNR
WDR DWDR
Weather resistance rating IP66
LENS
Lens type fixed focus
Focal length 4mm
Aperture F1.6
FOV 4mm:
Horizontal angle of view: 79°, Vertical angle of view: 43°, Diagonal angle of view: 93°
Lens mount M12
DORI Distance 4mm:
Detection: 80m (262ft)
Observe: 33m (109ft)
Identify: 16m (52ft)
Identification : 8 m (26 feet)
PTZ
Rotate/Tilt Range: Pan: 0° to 350°, Tilt: 0° to 120°
Rotate/Tilt Speed Traverse Speed:
Adjustable from 1° to 55°/s; Preset speed: 55°/s
Tilt speed:
Adjustable from 1° to 40°/s, preset speed 40°/s
Presets 300
Patrol Scan 8 patrols, up to 8 presets for each patrol
Power off memory Yes
Park Action Yes
3D positioning preset, patrolling
VIDEO
max. Resolution 2560 X 1440
HMain stream frame rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 frames per second.
Substream frame rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 frames per second.
Bitrate control CBR, VBR
Video compression Main stream: H.265+/H .265/H.264+/H.264
Substream: H.265/H.264
Type H.264 Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub Stream: 64 Kbps to 512 Kbps
< strong>ILLUMINATOR
IR LED Quantity: 2
Range: 30m;
Wavelength: 850nm
White LED Quantity: 2
Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always On/Always Off
ANGLE ADJUSTMENT (MANUAL)
Pan Range: 0° to 348°
Tilt: 0° to 120°
Picture Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Infrared Overexposure Prevention, HLC adjustable via client software, rotation (90°/270°)
Image enhancement BLC/3D DNR/HLC/SmartIR
Wide dynamic range DWDR
SNR ≥ 52 dB
Image parameter switch Yes
Privacy mask Up to 4 masks
ROI 1 Region
OSD setting Yes
AUDIO
Audio communication Two-way sound
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environmental Noise Filtering Yes
Audio Bitrate 64 Kbps (G.711 alaw)
NETWORK
Security Password protection, HTTPS encryption, IP address filter, Authentication
NAS network storage (NFS, SMB/CIFS)
TCP protocol /IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Frequency 2.4 GHz
API Open Network Video Interface (profile S)
Simultaneous Live View up to 6 Channels
VIGI Client App, VIGI Security Manager, VIGI NVR, Web
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari ® 11 and later
Microsoft® Edge 91 and later
Cloud Yes
ONVIF Yes
INTERFACES
Network interface 1 RJ45 10/100M self-adaptive Ethernet Port
Audio Out N/A
Alarm N/A
Reset Button Yes
DC Power Port
Reset Button Button
Built-in Storage, built-in memory card slot, MicroSD card support,
Up to 256 GB
Built-in microphone Yes
Built-in speaker Yes
Sound not available
ALARM AND GUIDANCE EVENTS
Smart event classification of people and vehicles, area intrusion detection, line crossing detection, people detection, vehicle detection, region entry detection, region exit detection, abandoned object detection, object removal detection< br />Basic event motion detection, video tamper detection, exception (illegal login)
Link to alarm, video recording to memory card, send messages, sound warning, flashing white light
Connection method N/ A
Output Notification Push Message
GENERAL
Package Contents VIGI Network Camera
Quick Start Guide
Waterproof Cable Connectors
Charger
Montaaccessories
Operating temperature -30-60 °C
Storage temperature -40-60 °C
Storage humidity 95% or less (non-condensing)
Operating humidity 95% or less (no condensation)
Material Plastic
General Features: Dual Stream, Mirror, Privacy Masks, Email Password Reset, HTTP Listening
Net Weight 0.62 Kg
Gross weight 1.21 kg
Energy consumption Max 15.3 W
Power supply 12V DC; 1.5 A
Antenna quantity: 2
Type: Welded dipole omnidirectional antenna 2.4 GHz
Gain: 2.0 dBi
Protection IP66
Product dimensions (D x W x H) 120 × 172 × 198 mm (without antennas)
Certificates CE, RCM, BSMI, VCCI, RoHS, NCC, JRF, KC
WIRELESS
IEEE 802.11b/g/n standards
WiFi channels 1-13
Frequency 2.4GHz
High wireless transmission power
Automatic wireless channel N/A
Wireless statistics N/A
Flow Mornitor N/A
Automatic Radio Bandwidth: N/A
20M: Yes
40M: Yes
Wireless speed 11 Mbps (802.11b )
54 Mbps (802.11g)
150/300 Mbps (802.11n)
Wireless Security PWPA/WPA2-PSK
Wireless Mode AP, AP Client
VIDEO/PICTURE
Video Compression Mainstream: H.265+/H.265/H.264+/H.264
Substream: H.265/H.264
Type H.264 Main Profile/High Profile
H.264+ Mainstream Supported
H.265 Mainstream Type
H.265+ Mainstream Supported
Frame Rate and Resolution Main stream
Frame rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Substream
Frame rate: 1fps , 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240
max. Resolution 2560 X 1440
Video Streaming Main Stream
Sub Stream
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, adjustable via client software
Enhancement images BLC/3D DNR/infrared overexposure prevention
Video bitrate Mainstream: 256Kbps to 3Mbps
Substream: 64Kbps to 512Kbps
Day/Night Switch Day/Night Switch/ auto/schedule
Privacy mask Up to 4 masks
SET OF SMART FUNCTIONS
Classification of people and vehicles of smart event, area intrusion
Detection, line crossing detection , people
Detection, Area Entry Detection, Area Exit
Detection, Abandoned Object Detection, Object
Removal Detection, Vehicle Detection
Basic Event Motion Detection, Video Tamper Detection . Outbound notification Push message
