300Mbps wireless speed is ideal for smooth HD video, voice streaming and online gaming
It supports multiple operation modes: access point, multiple SSID, client and range extender modes
Protects your home network with WPA2 encryption and establishes a fast connection with the push of a button
Up to 30 meters (100 feet) of flexible use with included passive injector for power over Ethernet

HARDWARE FEATURES

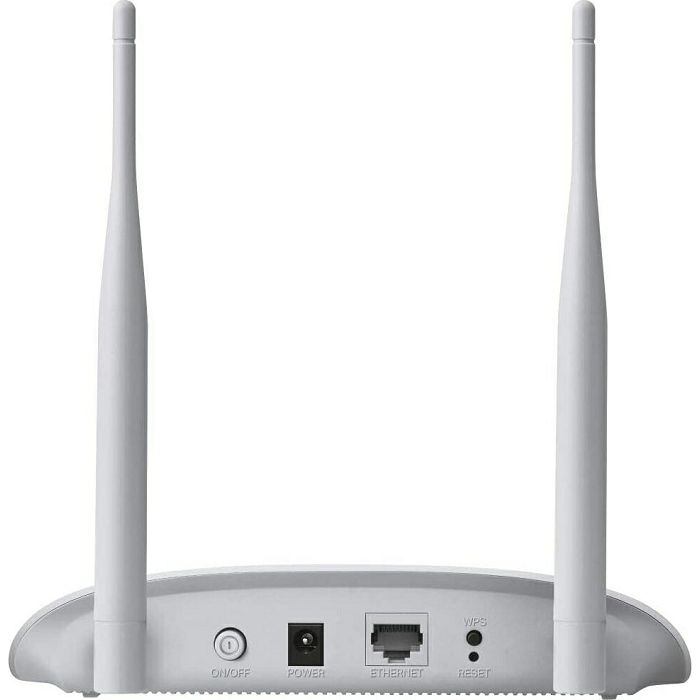

Interface 1 × 10/100 M Ethernet Port (RJ45)
Supports passive PoE
Button Power button, WPS button, Reset button
External power supply 9VDC / 0.6A
Wireless standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions (W x D x H) 7.1 x 5.1 x 1.4 in (181.6 x 129.5 x 36.2 mm)
Antenna type 2, fixed omnidirectional antennas
WIRELESS FEATURES
Frequency 2.4 GHz
Signal speed 300 Mbps at 2.4 GHz
11g 6Mbps reception sensitivity: -90dBm
11g 54Mbps: -77dBm
11n HT20 MC7: -73dBm
11n HT40 MC7: -70dBm
Transmit power CE: <15dBm; FCC: <20dBm
Wireless modes AP mode
Multiple SSID mode
Client mode
A way to extend the range
Wireless Features Enable/Disable Wireless Radio, WMM, Short GI, AP
Isolation, wireless statistics, flow control
Wireless security WEP, WPA/WPA2, WPA/WPA2-PSK encryption
Quality of WMM services
SNMP management
Advanced Features Passive PoE up to 30 meters is supported
SECOND
CE, FCC, RoHS certification
Package contents Wireless access point TL-WA801N
Charger
Passive PoE Power Injector
RJ45 Ethernet cable
Quick installation instructions
System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or other
A browser that supports Java
Cable or DSL modem
Subscription with an internet service provider (for internet access)
Ambient working temperature: 0°C~40°C (32°F ~104°F)
Storage temperature: -40°C~70°C (-40°F ~158°F)
Working humidity: 10%~90% RH
Storage humidity: 5%~90% RH
