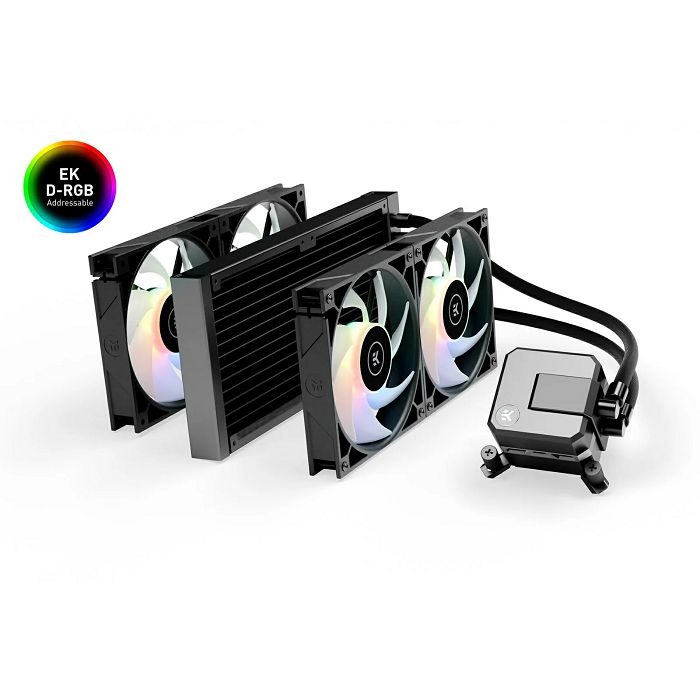

Easy installation with Universal Compatibility - The EK AIO comes with a universally compatible CPU water-block, fitting all the latest Intel & AMD CPU sockets as well as featuring a tool-less mounting mechanism for easy installation. Requiring just a single radiator mount, with diamond cut rotary fittings for easy tube adjustment, the EK AIO Elite offers compatibility with almost all modern case designs.

Dynamic Addressable D-RGB lighting - Customize your EK AIO to match your set-up with its range of fully addressable D-RGB lighting effects. Built into both its CPU block and six Vardar S fans, the EK AIO Elite offers a range of color configurations controlled from either your motherboard or standalone D-RGB controller. The Black Nickel cover of the pump unit now offers a very elegant look with the subtle hint of D-RGB peeking through the EK logo.

This product is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the A-RGB (D_RGB) header.

EK RGB ALL

Ultra-durable design with diamond-cut rotary fittings - The EK AIO comes pre-installed with reinforced and sleeved rubber tubing, each fitted with an aluminum cover to ensure they’re ultra-durable. Its diamond-cut rotary fittings allow for easy installation and adjustment of the rubber tubing, featuring a full range of movement to make the EK AIO suitable for installation in even the tightest spaces.

EK-Vardar High-Performance Fans - The EK-Vardar S included with the EK AIO are industrial grade high-static PWM fans, designed and built primarily for high-performance liquid cooling systems. Controlled by either your motherboard or standalone fan controller, the EK Vardar can be adjusted to run at speeds between 550 - 2200RPM for either high airflow or silent running. The EK-AIO Elite includes four 140mm Vardar fans, which can be utilized to create a push-pull configuration or if there is not enough space, create a better airflow by positioning two of the fans on the case itself.

Cable management - To help manage the cables of EK-Vardar fans, the EK-AIO Elite unit comes with an included EK-Hub, offering multi-connection with seven sets of addressable RGB LED headers and 4-pin PWM fan headers. The EK-Hub will help you neatly organize the Push-Pull fan configuration.



Technical Specifications:

Radiator Dimensions: 313 x 140 x 27 mm
Radiator Material: Aluminum
Fan Compatibility: 140 mm
Pump Unit Dimensions: 88 x 70 x 64 mm
Pump Unit Material: Black nickel Housing, Copper Cold plate, Steel Mounting Pump
Pump Speed Range: 1000 - 3300 RPM B1 10%
Pump PWM Range: 25 - 100%
Pump Cable Length: 450 ± 20 mm
Pump Unit RGB Type: 5V Digital (Addressable)
Pinout: 5V, D, Empty, Ground Pump RGB Cable Length: 50 mm
Tubing Material: Ultra-Low Evaporation Rubber with Nylon Braided Sleeve
Tubing Length: 400 mm
Fan Dimensions: 140 x 140 x 25mm
Fan Speed Range: 550 - 2200 B1 10%
Fan Noise Level: 36,4 dBA (at maximum speed)
Fan Static Pressure: 1,9 mm H20 = 18,6 Pa (at maximum speed)
Fan Air Flow: 116 CFM = 197 m3/h
Fan Cable Length: 400 ± 5 mm
Fan RGB Type: 5V Digital (Addressable) Pinout: 5V, D, Empty, Ground
Fan RGB Cable Length: 50 mm
